Map Component

map

Function Description：Map, this component is Native Component , please pay attention to the relevant restrictions when using it, and the relevant API can be found in wx.createMapContext
Support Description:：
System Map: Only supported by iOS.
Google Map: Android support, IDE support.
Huawei Map: Only supported by Android.
Tencent Map: IOS support, Android support, IDE support.
Parameters and descriptions:

Properties	Type	Default value	Required	Description	iOS support	Android support	IDE support
type	string	tencent	No	Map type, tencent or google	No	No	Yes
longitude	number	-	Yes	Center longitude	Yes	Yes	Yes
latitude	number	-	Yes	Center latitude	Yes	Yes	Yes
scale	number	16	No	Zoom level, value range is 3 to 20	Yes	Yes	Yes
min-scale	number	3	No	Minimum zoom level		Yes	Yes
max-scale	number	20	No	Maximum zoom level		Yes	Yes
markers	array.marker	-	No	Marker point	Yes	Yes	Yes
polyline	array.polyline	-	No	Route	Yes	Yes	Yes
circles	array.circle	-	No	Circle	Yes	Yes	Yes
controls	Array.control	-	No	Control (to be abandoned, it is recommended to use cover-view instead)	No	No	No
include-points	array.point	-	No	Zoom the field of view to include all given coordinate points	Yes	Yes	Yes
show-location	boolean	false	No	Show the current location point with direction	Yes	Yes	Yes
polygons	array.polygon	-	No	Polygon	Yes	Yes	Yes
subkey	string	-	No	Key used by personalized map	No	No	Yes
layer-style	number	1	No	Map capability [Personalized map] configuration style	No	No	No
rotate	number	0	No	Rotation angle, range 0 ~ 360, the angle between the true north of the map and the y-axis of the device	No	Yes	No
skew	number	0	No	Tilt angle, range 0 ~ 40, the tilt angle about the z-axis	System map: No Tencent map: Yes Baidu map: Yes Amap: Yes	Yes	No
enable-3D	boolean	false	No	Show 3D building blocks	System map: No Tencent map: Yes Baidu map: No Amap: No	Google map: Yes Huawei map: Yes Tencent map: Yes Baidu map: Yes Amap: No	No
show-compass	boolean	false	No	Show compass	Yes	Yes	No
show-scale	boolean	false	No	Show scale	Yes	Google map: No Huawei map: No Tencent map: Yes Baidu map: Yes Amap: Yes	Yes
enable-overlooking	boolean	false	No	Turn on bird's eye view	System map: No Tencent map: Yes Baidu map: Yes Amap: Yes	Yes	No
enable-zoom	boolean	true	No	Support zooming	View container.	View container.	Yes
enable-scroll	boolean	true	No	Support dragging	View container.	Yes	Yes
enable-rotate	boolean	-	No	Support rotation	Yes	Yes	No
enable-satellite	boolean	false	No	Support satellite image	Yes	Google map: Yes Huawei map: No Tencent map: Yes Baidu map: Yes Amap: Yes	Yes type=google
enable-traffic	boolean	false	No	Support real-time traffic conditions	Yes	Yes	Yes
enable-poi	boolean	true	No	Show POI points	System map: No Tencent map: Yes Baidu map: Yes Amap: No	Google map: Yes No Tencent map: Yes Baidu map: Yes Amap: Yes	View container. type=google
enable-building	boolean	false	No	Show buildings	System map: No System map: Yes Tencent map: No Tencent map: Yes	The type of icon, valid values: success, success_no_circle, info, warn, waiting, cancel, download, search, clear	View container. type=google
setting	object	-	No	Configuration items	No	No	Yes
bindtap	eventhandle	-	No	Triggered when clicking the map, returns longitude and latitude information	Yes	Yes	Yes
bindlabeltap	eventhandle	-	No	Triggered when clicking a marker point e.detail = {markerId}	Yes	Yes	Yes
bindmarkertap	eventhandle	-	No	Triggered when clicking a label, e.detail = {markerId}	Yes	No	Yes type=tencent
bindcontroltap	eventhandle	-	No	Triggered when clicking a control, e.detail = {controlId}	No	No	No
bindcallouttap	eventhandle	-	No	Triggered when clicking the bubble corresponding to the marker point e.detail = {markerId}	No	No	Yes
bindupdated	eventhandle	-	No	Triggered when the map rendering update is completed	Yes	Yes	Yes
bindregionchange	eventhandle	-	No	Triggered when the field of view changes	Yes	Yes	Yes
bindpoitap	eventhandle	-	No	Triggered when clicking on a map poi point, e.detail = {name, longitude, latitude}	No	Yes	Yes
bindanchorpointtap	eventhandle	-	No	Triggered when clicking on a location marker, e.detail = {longitude, latitude}	No	No	No

TIP

(Color values in the map, such as color/borderColor/bgColor, need to be represented using 6-digit (8-digit) hexadecimal notation. In 8-digit notation, the last two digits represent the alpha value, e.g., #000000AA.points) Structural Attributes
The longitude and latitude of the map component are required.
The longitude and latitude used by the map component are the Martian coordinate system. When calling the wx.getLocation interface, you need to specify type as gcj02.

regionchange Return value:

When the field of view changes, regionchange will be triggered twice, and the returned type values

The begin stage returns causedBy: valid values
The end stage returns causedBy: valid values

e = {
  causedBy,
  type,
  detail: { rotate, skew, scale, centerLocation, region },
};

setting

Provide setting objects to uniformly set map configurations. At the same time, for some animation properties such as rotate and skew, they cannot take effect at the same time when set separately through setData, and need to be modified uniformly through settting.

// Default values
const setting = {
  rotate: 0,
  showLocation: false,
  subKey: "",
  layerStyle: 1,
  enableZoom: true,
  enableScroll: true,
  enableRotate: false,
  showCompass: false,
  enableSatellite: false,
};

this.setData({
  // Changes only affect the properties involved in the setting object; other properties remain unaffected.
  setting: {
    enableZoom: false,
    enableScroll: false,
  },
});

marker

Mark point, used to display the location of the mark on the map.

Properties

Type

Default value

Required

Description

iOS support

Android support

IDE support

Mark point id

number

The marker click event callback will return this id. It is recommended to set an ID for each marker to ensure better performance when updating the marker.

Yes

clusterId

Cluster ID

number

Used when customizing point cluster effects

joinCluster

Whether to participate in point aggregation

boolean

Default is not to participate in point aggregation

Google map: Yes
Huawei map: Yes
Tencent map: Yes
Baidu map: Yes
Amap: No

latitude

Latitude

number

Yes

Floating point number, range -90 ~ 90

Yes

longitude

Longitude

number

Yes

Floating point number, range -90 ~ 90

Yes

title

Point name

string

Displayed when clicked, ignored when callout exists

Yes

Yes type=tencent

zIndex

Display level

number

Yes

iconPath

Displayed icon

string

Yes

Image path under the project directory, supports network path, local path, code package path

Yes

rotate

Rotation angle

number

Clockwise rotation angle, range 0~360, default is 0

Yes

Yesype=tencent

alpha

Transparency of annotation

number

Default is 1, no transparency, range 0~1

Yes

Yesype=tencent

width

Annotation icon width

number/string

Default is the actual width of the image

Yes

height

Annotation icon height

number/string

Default is the actual height of the image

Yes

callout

Bubble window above the marker point

object

Supported properties are shown in the table below, line breaks can be recognized

Yes

customCallout

Custom bubble window

object

Supported properties are shown in the table below

label

Add a label next to the marker point

object

Supported properties are shown in the table below, line breaks can be recognized

Yes

anchor

Longitude and latitude are at the anchor point of the annotation icon, default is the bottom midpoint

object

{x, y}, x represents horizontal direction (0-1), y represents vertical direction (0-1). {x: .5, y: 1} represents the midpoint of the bottom edge

Yes

Callout bubble on marker

Properties

Description

Type

iOS support

Android support

IDE support

content

Text

string

Yes

color

Text color

string

Yes

fontSize

Text size

number

Yes

borderRadius

Border radius

number

Yes

borderWidth

Border width

number

Yes

borderColor

Border color

string

Yes

bgColor

Background color

string

Yes

padding

Text compilation blank

number

Yes

display

BYCLICK': click to display; 'ALWAYS': always display

string

Yes

textAlign

Text alignment. Valid values: left, right, center

string

Yes

anchorX

Horizontal offset, positive number to the right

number

Google map: Yes

Huawei map: Yes

Tencent map: Yes

Baidu map: No

Amap: Yes

anchorY

Vertical offset, positive number to the bottom

number

Google map: Yes

Huawei map: Yes

Tencent map: Yes

Baidu map: No

Amap: Yes

Custom bubble on marker customCallout

When customCallout exists, callout and title attributes will be ignored. Custom bubble is customized using cover-view, which is more flexible.

Properties

Type

Default value

iOS support

Android support

IDE support

display

BYCLICK': click to display; 'ALWAYS': always display

string

anchorX

Horizontal offset, positive number to the right

number

anchorY

Vertical offset, positive number to the bottom

number

Usage is as follows: add a slot node named callout under the map component, and its internal cover-view is bound to the marker through the marker-id attribute. When the marker is created, the content displayed by the cover-view will be displayed above the marker as a callout.

<map>
  <cover-view slot="callout">
    <cover-view marker-id="1"></cover-view>
    <cover-view marker-id="2"></cover-view>
  </cover-view>
</map>

Bubble label on the marker

Properties	Type	Default value	iOS support	Android support	IDE support
content	Text	string	No	No	Yes
color	Text color	string	No	No	Yes
fontSize	Text size	number	No	No	Yes
anchorX	The coordinates of the label, the origin is the latitude and longitude corresponding to the marker	number	No	No	Yes
anchorY	The coordinates of the label, the origin is the latitude and longitude corresponding to the marker	number	No	No	Yes
borderWidth	Border width	number	No	No	Yes
borderColor	Border color	string	No	No	Yes
borderRadius	Border radius	number	No	No	Yes
bgColor	Background color	string	No	No	Yes
padding	Text compilation blank	number	No	No	Yes
textAlign	Text alignment. Valid values: left, right, center	string	No	No	Yes

Point aggregation

Function DescriptionWhen there are too many markers that need to be displayed on the map, the markers on the interface may be overlapped, the display is incomplete, and the overall performance deteriorates. To address this problem, the point aggregation capability is introduced.
System map (only supported by iOS)
The usage process is as follows:
- MapContext.addMarkers Specify the markers involved in the aggregation.
- (Optional) When MapContext.on('markerClusterCreate', callback) is triggered, MapContext.addMarkers Update the style of the cluster.
- MapContext.removeMarkers Remove the markers involved in the aggregation.
Google Maps (only supported by Android)
To use it, specify joinCluster when adding a marker. The markers that meet the conditions will be automatically aggregated.

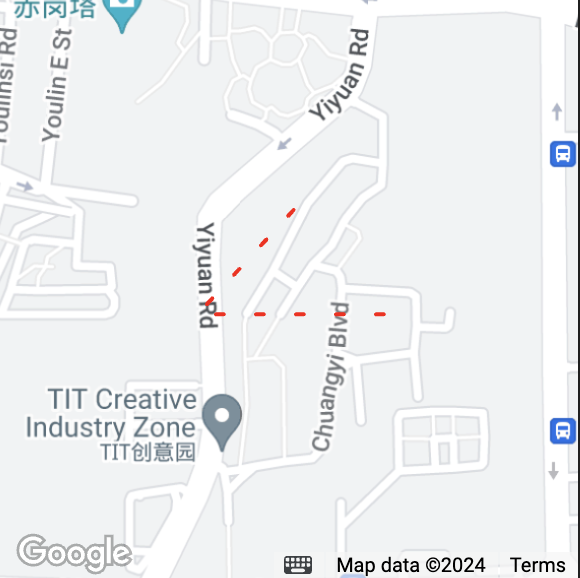

polyline

Function DescriptionSpecify a series of coordinate points, connect the first item in the array to the last item. When drawing a rainbow line, you need to specify the colors of different segments. For example, if points contains 5 points, then colorList should pass in 4 color values; if the length of colorList is less than points.length - 1, the colors of the remaining segments will be consistent with the last item.

Properties

Type

Default value

Required

Remarks

iOS support

Android support

IDE support

points

Array of longitude and latitude

Array

Yes

[{latitude: 0, longitude: 0}]

Yes

color

Line color

string

Hexadecimal

Yes

colorList

Rainbow line

Array

Ignore color value if it exists

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: Yes

Amap: Yes

width

Line width

number

Yes

dottedLine

Is it a dotted line?

boolean

Default is false

Yes

arrowLine

Is it a dotted line?

boolean

Yes

arrowIconPath

Change arrow icon

string

Yes

borderColor

Line border color

string

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

Yes

borderWidth

Line thickness

number

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

Yes

level

Overlap relationship

string

Default is abovelabels

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

textStyle

Text style

TextStyle

Text style on polyline

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

segmentTexts

Segment text

Array.SegmentText

Text content and position on polyline

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

SegmentText

Properties	Description	Type
name	Name	string
startIndex	Starting point	number
endIndex	End point	number

TextStyle

Properties	Description	Type	Default value
textColor	Text color	string	#000000
strokeColor	Stroke color	number	#ffffff
fontSize	Text size	number	14

The level field indicates the overlapping relationship with other map elements. The optional values

Value	Description
abovelabels	Display above all POIs
abovebuildings	Display above the building block and below the POI
aboveroads	Display above the road and below the building block

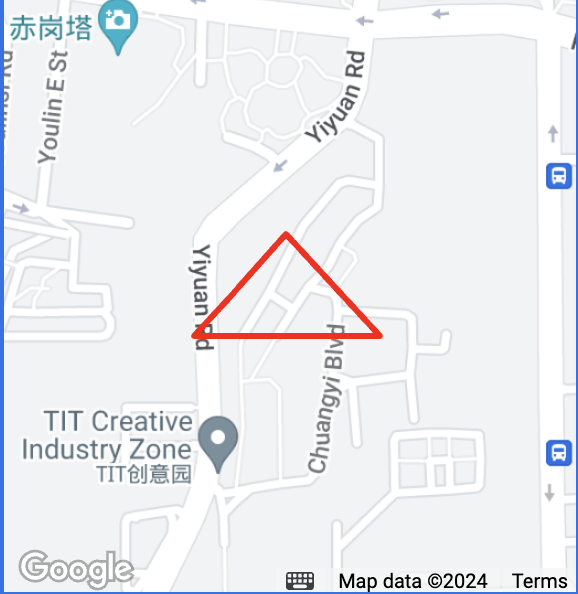

polygon

DescriptionSpecify a series of coordinate points and generate a closed polygon based on the points coordinate data

Properties

Description

Default value

Required

Remarks

iOS support

Android support

IDE support

dashArray

Dash line

Array.number

The default value [0, 0] is a solid line, and [10, 10] is a dashed line consisting of 10 pixels of solid line and 10 pixels of blank space (and so on)

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

points

Array of longitude and latitude

array

Yes

[{latitude: 0, longitude: 0}]

Yes

strokeWidth

Stroke width

number

Yes

strokeColor

Stroke color

string

Hexadecimal

Yes

fillColor

Fill color

string

Hexadecimal

Yes

zIndex

Set the Z axis value of the polygon

number

Yes

level

Overlap relationship

string

Yes

Default is abovelabels

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

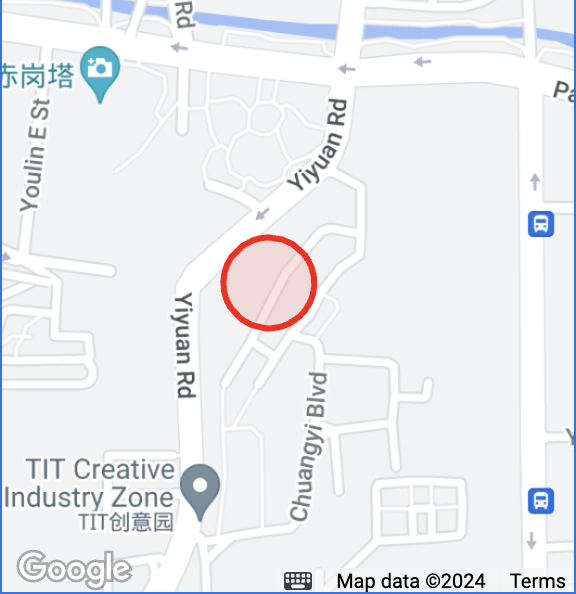

circle

Function Description： Display a circle on the map

Properties

Description

Default value

Required

Remarks

iOS support

Android support

IDE support

latitude

Latitude

number

Yes

The default value [0, 0] is a solid line, and [10, 10] is a dashed line consisting of 10 pixels of solid line and 10 pixels of blank space (and so on)

Yes

longitude

Longitude

number

Yes

Floating point number, range -180 ~ 180

Yes

color

Stroke color

string

Floating point number, range -180 ~ 180

Yes

fillColor

Fill color

string

Hexadecimal

Yes

radius

Radius

number

Yes

strokeWidth

Stroke width

number

Yes

level

Overlap relationship

string

Yes

Default is abovelabels

Google map: No

Huawei map: No

Tencent map: Yes

Baidu map: No

Amap: No

control

Display the control on the map. The control does not move with the map and will be abandoned soon. It is recommended to use cover-view

Properties

Type

Default value

Required

Remarks

iOS support

Android support

IDE support

Control id

number

This id will be returned when the control is clicked

position

The location of the control on the map

object

Yes

The location of the control on the map

iconPath

Displayed icon

string

Yes

Image path in the project directory, supports local path and code package path

clickable

Is it clickable

boolean

Not clickable by default

position

Properties

Type

Default value

Required

Remarks

iOS support

Android support

IDE support

left

How far from the left border of the map

number

Default is 0

top

How far from the upper border of the map

number

Default is 0

width

Width of space

number

Default is image width

height

Height of space

number

Default is image height

bindregionchange return value

Properties

Description

Type

Remarks

type

Triggered when the field of view changes at the beginning and end

string

Field of view changes start with begin and end with end

causedBy

Causes of field of view changes

string

Drag the map (drag), zoom (scale), call the interface (update)

Scale

scale

Scale

1000km

500km

200km

100km

50km

25km

20km

10km

5km

scale

Scale

2km

1km

500m

200m

100m

50m

20m

10m

Understand The Applet

Configure The Applet

Applet Framework

Basic Capabilities

Applet Configuration

Framework Interface

wxml Syntax Reference

Wxs Syntax Reference

Interface

NetWork

Canvas

Media

Device

Engine

Runtime

Capability

Rendering

Device

Map Component

map

regionchange Return value:

setting

marker

Callout bubble on marker

Custom bubble on marker customCallout

Bubble label on the marker

Point aggregation

polyline

SegmentText

TextStyle

polygon

circle

control

position

bindregionchange return value

Scale

Map Component ​

map ​

regionchange Return value: ​

setting ​

marker ​

Callout bubble on marker ​

Custom bubble on marker customCallout ​

Bubble label on the marker ​

Point aggregation ​

polyline ​

SegmentText ​

TextStyle ​

polygon ​

circle ​

control ​

position ​

bindregionchange return value ​

Scale ​

Map Component

map

regionchange Return value:

setting

marker

Callout bubble on marker

Custom bubble on marker customCallout

Bubble label on the marker

Point aggregation

polyline

SegmentText

TextStyle

polygon

circle

control

position

bindregionchange return value

Scale
